A complete 19-inch 42U/47U data-center rack on a welded frame, built to EIA-310-D and EN IEC 61587-1, with four depth-adjustable mounting rails, an 80% mesh front door, a 3-point latch and a 1500 kg static load rating. Bayable in rows, configured to your specification and delivered on a 2–4 week European lead time.
The Wenvex DX-Series is a 19-inch data-center rack with a welded frame structure, built to EIA-310-D rail geometry and EN IEC 61587-1, available in 42U and 47U heights, 600 or 800 mm wide and 1000, 1200 or 1400 mm deep. It ships with four depth-adjustable mounting rails (25 mm increments), an 80% mesh front door with a reversible hinge and a 3-point latch, earthing points and a 1500 kg static load rating, and is bayable side-by-side in rows for hot-aisle/cold-aisle layouts. Access control options include the standard 1333 key, a combination lock, a profile cylinder, RFID or a custom solution. Cabinets are welded and assembled in Yambol, Bulgaria and delivered across Europe on a 2–4 week standard lead time.
| Construction | Welded frame structure |
|---|---|
| Heights | 42U · 47U |
| Widths | 600 mm · 800 mm |
| Depths | 1000 · 1200 · 1400 mm |
| Rack standard | EIA-310-D (19″ rail geometry) |
| Mounting rails | 4× 19″ EIA, 25 mm-adjustable |
| Static load | 1500 kg |
| Earthing | Earthing points as standard |
| Baying | Bayable, joins in rows |
| Front door | Mesh 80% (standard); solid or glass optional |
|---|---|
| Door hinge | Reversible left / right |
| Latch | 3-point latch on the doors, standard |
| Access control | 1333 key · combination lock · profile cylinder · RFID · custom |
| Rear door | Mesh standard (single/double); solid optional |
| Side panels | Both sides · one panel left · one panel right · none (two-piece, removable) |
| Base | Open by default; closable (base/gland plate) |
|---|---|

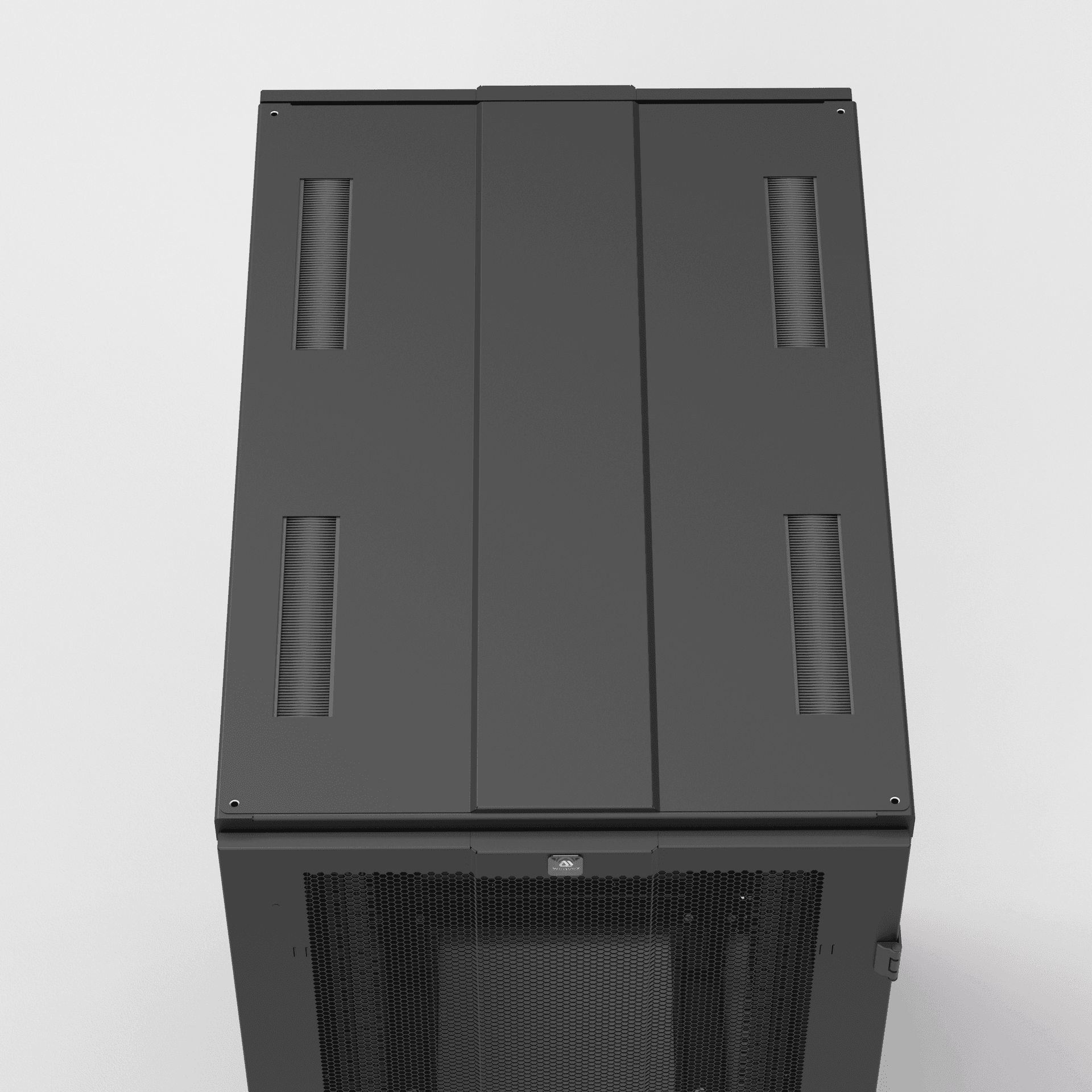

| Roof | 4 cable entryways with brush (standard) |
| Feet / castors | Leveling feet included; castors optional |
| Finish | RAL (black RAL 9011 default); custom RAL optional |
| Enclosure standard | EN IEC 61587-1 |
Every DX-Series cabinet is generated from a structured configuration (height, width, depth, doors, access control, side panels, base, roof, colour and accessories) so your quote carries an exact SKU and a reversible technical summary.
Specify the DX-Series with the subsystems you already trust. Each is designed to integrate and fitted before the cabinet ships.
Electronic locks & RFID access
Swing handles, electronic locks and RFID access control, the class of hardware trusted across enterprise and colocation racks, engineered into the door rather than retrofitted onto it.
Rack-door cooling units
High-density heat handled at the rack with rack-door cooling units, a real thermal answer for dense and HPC deployments, sized against the cabinet depth it ships in.
Metered & switched PDUs
Intelligent metered and switched PDUs, per-tenant energy metering and remote power management, specified with the cabinet and fitted in the vertical cable channel before it ships.
The DX-Series datasheet covers the full specification, dimensions and option list. Enter your details and it is emailed to you immediately. CAD models (STEP / DWG) are released once our engineering team has reviewed the request, normally within one business day.
42U and 47U heights, 600 mm or 800 mm wide, and 1000, 1200 or 1400 mm deep. Other combinations can be quoted as a custom build.
The DX-Series is rated for a 1500 kg static load. For higher rated loads, see the W-Series (2500 kg static).

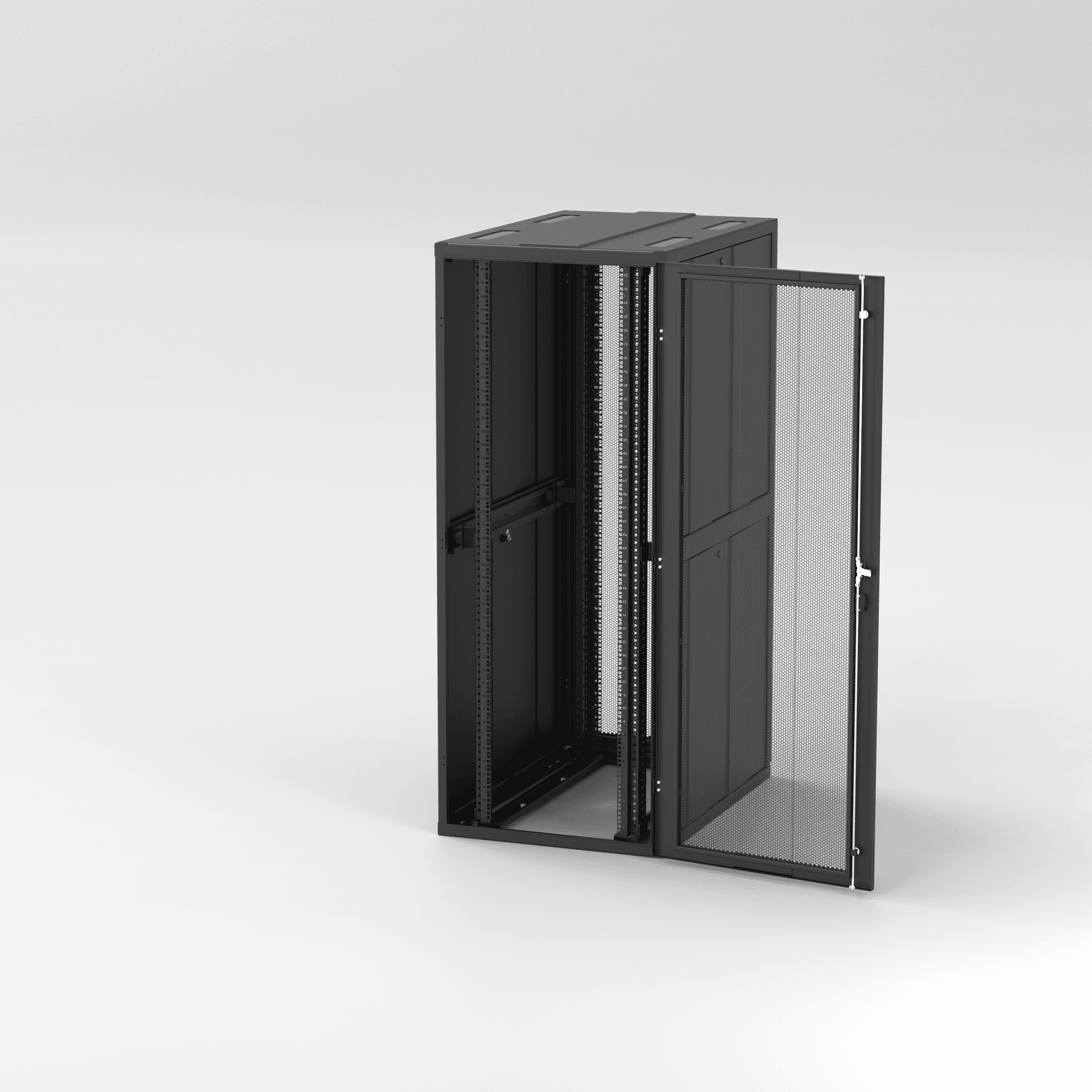

Yes. The DX-Series is built on a welded frame structure rather than a bolted kit, which is what gives it its rigidity in transit and under load. It is welded, coated and assembled in our own factory in Yambol, Bulgaria.

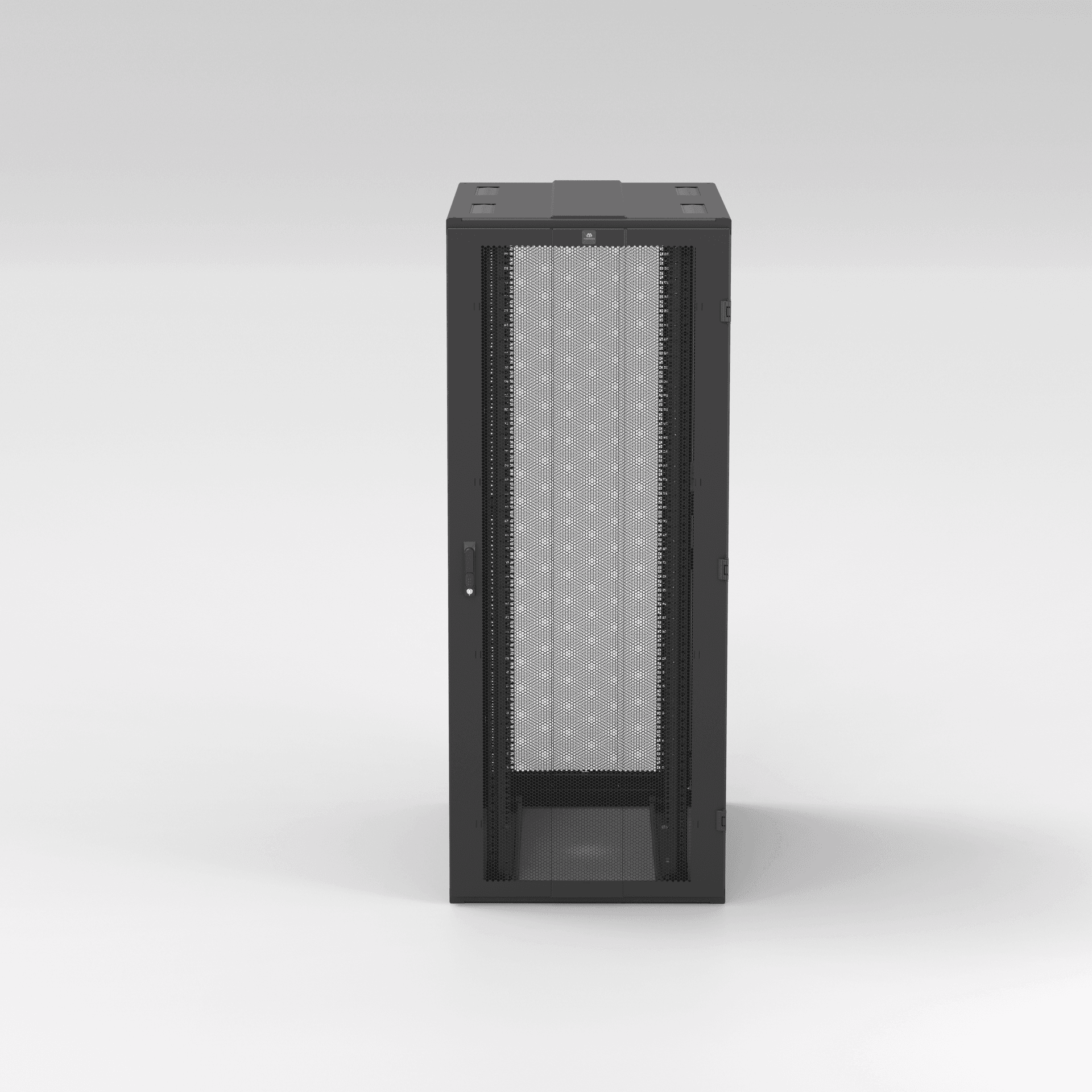

An 80% mesh front door is standard, with solid or glass optional and a reversible hinge. Every DX-Series door has a 3-point latch as standard for security, and that latch takes the access control option you choose: the standard 1333 key, a combination lock, a profile cylinder, RFID access or a custom solution.
Side panels can be specified on both sides, on the left side only, on the right side only, or left off entirely. Panels are two-piece and removable, so a bayed cabinet only needs panels at the ends of the row.
Yes. Earthing points are fitted as standard so the frame, doors and removable panels can be bonded to your earthing scheme.
Yes. The DX-Series is bayable and joins side-by-side in rows for cold-aisle/hot-aisle deployments. It is single-bay; multi-bay secure colocation compartments are the W-Series line.
Yes. The DX-Series is designed to integrate rack-door cooling units and metered or switched PDUs, specified with the cabinet and fitted at the factory before it ships.
Standard configurations are built on a 2–4 week European lead time. Cabinets are welded and assembled in-house in Yambol, Bulgaria, with no overseas sourcing cycle.
The DX-Series is built to EIA-310-D, the standard that defines 19-inch rack rail geometry and hole spacing, and to EN IEC 61587-1, the European standard covering mechanical structures for electronic equipment. Test and compliance documentation is available on request.

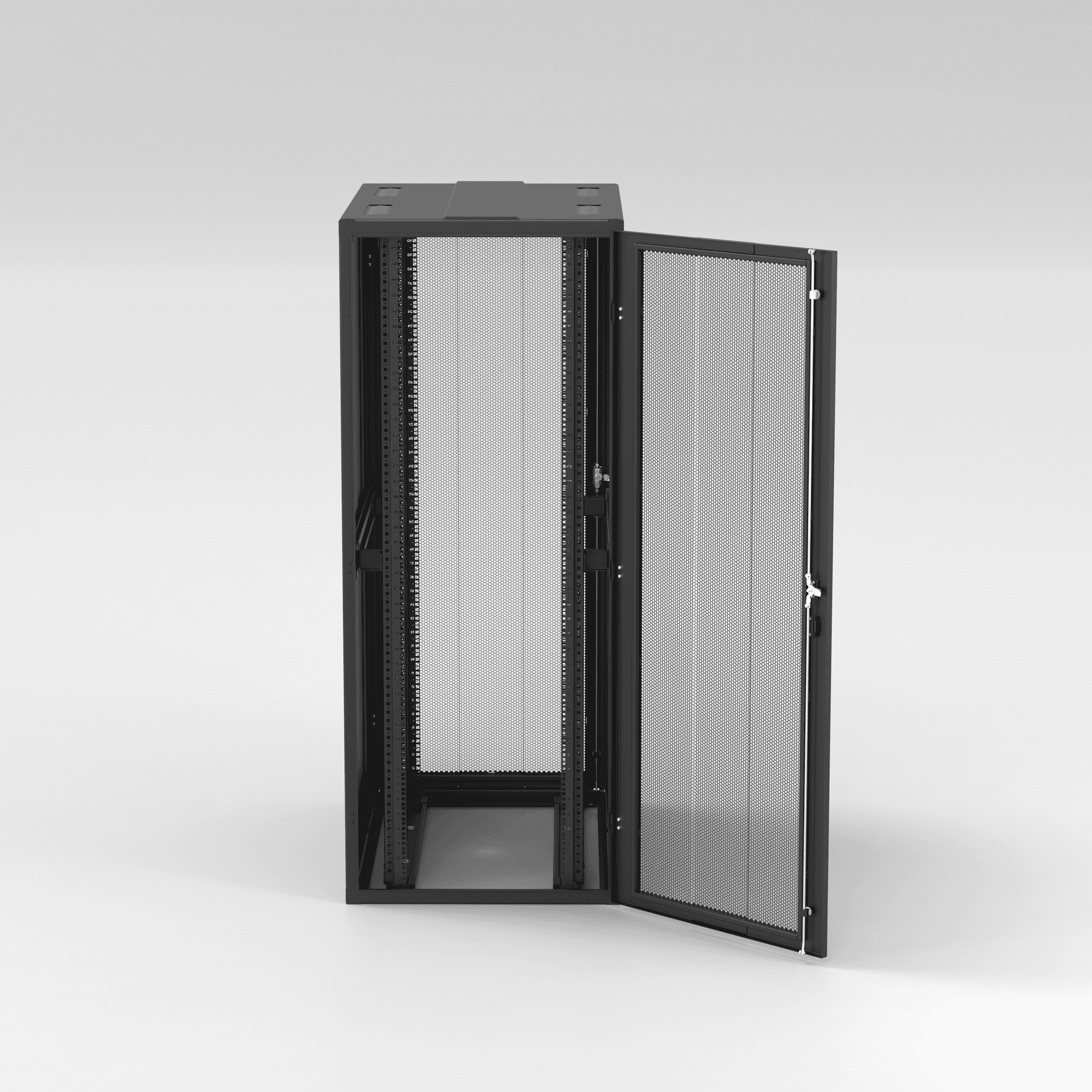

Yes. Because the mounting rails follow EIA-310-D hole spacing, any standard 19-inch rack-mount server, switch or rail kit fits. The four rails adjust in 25 mm increments so mounting depth can be set to the equipment rather than the other way round.
Send us the configuration you need and get an engineered quote with an exact SKU, or book a technical call to talk it through.
